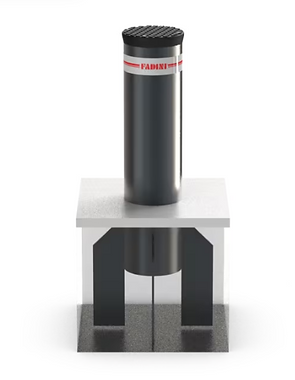

TALOS M30

FIXED BOLLARDS FOR PERIMETER SECURITY

FEATURES

TALOS M30 fixed bollards have been designed and constructed to match TALOS M30 automatic bollards, the combined application of both versions is thus possible. The fixed bollards are to be set into a concrete foundation with a proper iron reinforcement enabling the bollards to meet the breakout resistance value as specified. A version with 12 amber colour signalling LED lights incorporated in the rubber edge also available. Ideal for perimeter security in public or private areas, as well as for traffic control applications.

Cylinder diameter (mm)

Cylinder thickness (mm)

Cylinder height from ground (mm)

Cylinder material

Cylinder treatment and finishing

Impact resistance (J)

Breakout resistance (J)

Weight (kg)

275

800

S235JRH steel

cataphoresis and polyester powder coating RAL 7016
AISI 304 brushed SS steel sleeve

150.000

700.000

116

Fixed bollard for perimeter security. Designed and constructed to meet the ASTM F2656-07, PAS 68:2013 and IWA 14-1 standards. Height from ground is 800 mm. S355J2H steel cylinder, thickness 12 mm and ø 275 mm, cataphoresis treated and polyester powder coated (an AISI 304 brushed stainless steel cover sleeve also available). Aluminium cylinder head with rubber edge (integrated led lights also available). Cylinder with an approved, retro-reflecting, high intensity, micro-prismatic adhesive film (h 80 mm). Breakout resistance 700.000 J.
